ABB SF810-F0-G-2400N Fiber Optic Cable: Premium Light Guide for Industrial Flame Monitoring Systems

yuli

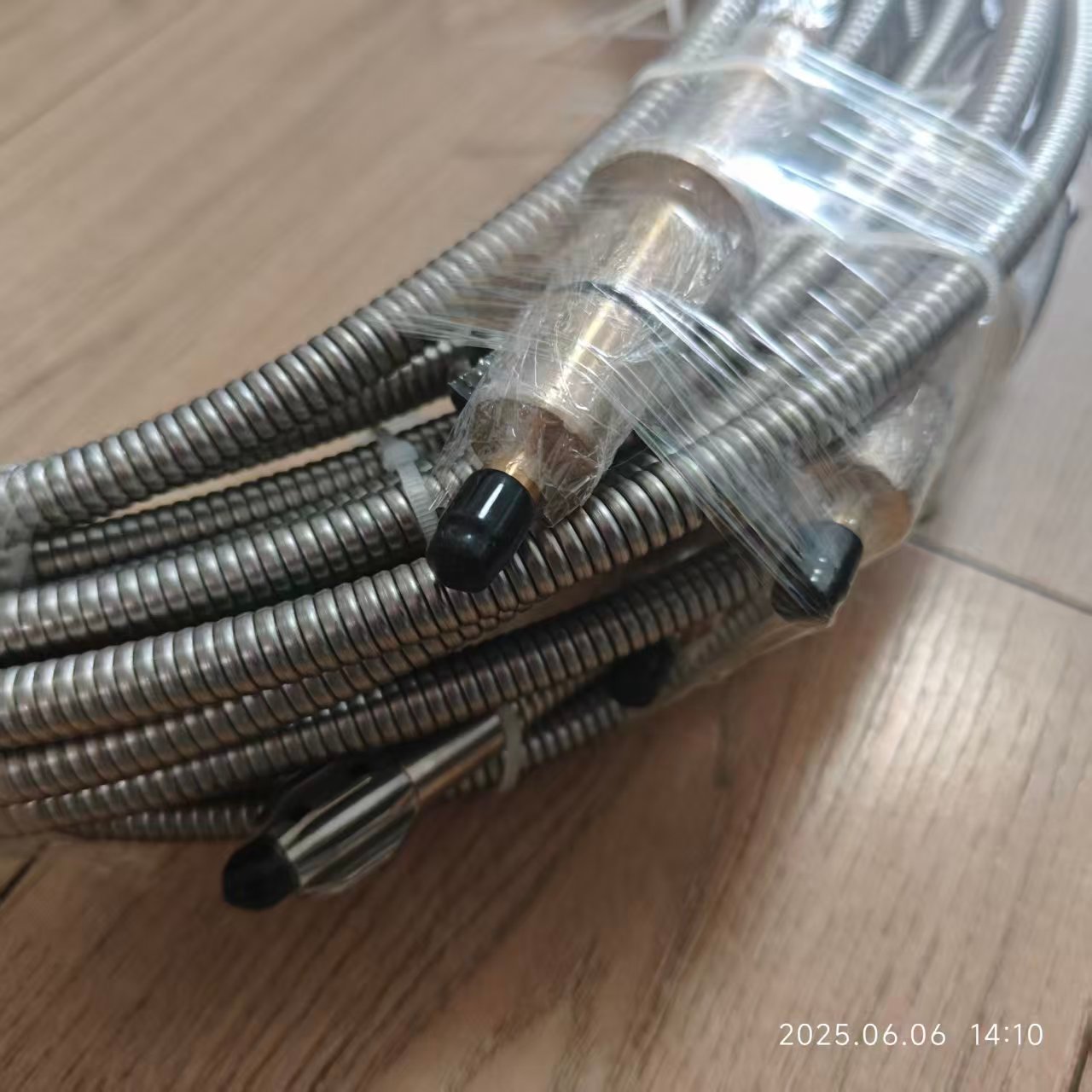

Genuine ABB SF810-F0-G-2400N Fiber Optic Cable Specifications and Supply
In heavy industrial combustion systems—such as those found in utility boilers, thermal power plants, and petrochemical furnaces—the Burner Management System (BMS) relies entirely on accurate data. If a flame scanner cannot clearly "see" the flame root due to structural constraints or extreme heat, the safety of the entire plant is compromised.

To bridge the gap between intense furnace interiors and sensitive sensor electronics, industrial engineers rely on heavy-duty fiber optic assemblies. Among the most trusted components in the market is the ABB SF810-F0-G-2400N Fiber Optic Cable, designed specifically to pair with ABB’s flagship SF810 intelligent flame scanner series.

At Wuhan Yuli Automation Technology Co., Ltd., we understand that a single faulty cable can cause expensive unscheduled downtime. In this technical guide, we will break down the engineering specifications, core benefits, and vital maintenance practices for the ABB SF810-F0-G-2400N assembly.

Decoding the Model Code: SF810-F0-G-2400N

ABB's nomenclature provides specific engineering details about the fiber optic inner assembly's construction and dimensions. Let’s look at what SF810-F0-G-2400N tells us:

  • SF810 Family: This indicates absolute compatibility with the ABB SF810 multi-flame viewing system, ensuring optimal light transmission and optical alignment with the scanner electronics.

  • F0 / G: Specifies the specialized glass fiber material composition and protective cladding profile designed to handle high-frequency optical signals without attenuation.

  • 2400N: Represents the precise physical length of the assembly—2400 mm (2.4 meters)—engineered for deep-reach burner designs, fitted with standard heavy-duty protective outer casing connections (N).

Core Technical Advantages of the ABB SF810-F0-G-2400N

1. Superior High-Temperature Isolation

The frontline environment of a coal or oil burner easily exceeds temperatures that would instantly destroy standard silicon or electronic sensors. The SF810-F0-G-2400N utilizes raw, high-purity glass fiber bundles capable of withstanding massive thermodynamic stress. This allows the lens to be positioned at the optimal viewing angle inside the burner windbox while keeping the electronic scanner housing safely cooled outside.

2. Low-Attenuation Optical Transmission

Infrared (IR) and Ultraviolet (UV) flame monitoring requires the transmission of precise light flicker frequencies. This ABB cable is engineered with premium optical glass that minimizes signal loss (attenuation) over its 2400 mm length. It ensures that the micro-pulsations of the flame root reach the microprocessor with crisp clarity, eliminating false "Flame Off" alarms.

3. Rugged Industrial Armoring

Industrial burner fronts are prone to mechanical vibrations, high ambient dust, and aggressive gases. The SF810-F0-G-2400N structure features heavy-duty flexible conduit armoring that protects the delicate glass fibers inside from twisting, crushing, or environmental contamination.

Maintenance and Best Practices for Field Engineers

To maximize the lifespan of your ABB fiber optic guides and avoid sudden boiler trips, the engineering team at Wuhan Yuli Automation recommends the following field practices:

1. Respect the Minimum Bend Radius

Glass fibers are incredibly efficient at transmitting light, but they are physically brittle under sharp angles. During installation or MRO replacement, never force the SF810-F0-G-2400N into a tight bend. Exceeding the manufacturer’s recommended bend radius will cause micro-fractures inside the glass core, permanently degrading the flame signal margin.

2. Maintain Continuous Purge Air

Soot, fly ash, and unburnt fuel residue will quickly coat the tip of the fiber optic lens if left unprotected. Always ensure that the scanner’s cooling and purging air system is operational, delivering clean, dry, oil-free instrument air. This constant positive pressure creates an air barrier that keeps the lens face pristine.

3. Periodic Lens Inspection

During planned maintenance outages, carefully decouple the fiber optic inner assembly. Clean the lens surface using a lint-free optical wipe and specialized industrial alcohol. Inspect the outer armor for any signs of heat discoloration or physical kinking.

Why Source the ABB SF810-F0-G-2400N from Wuhan Yuli Automation?

Flame monitoring is a critical safety operation. Settling for third-party imitations or poorly refurbished cables can lead to signal drift, sluggish BMS response, or hazardous blind spots in your furnace monitoring.

Wuhan Yuli Automation Technology Co., Ltd. is a premier B2B supplier of authentic industrial automation hardware. Partnering with us guarantees:

  • 100% Original Factory-New Hardware: We supply genuine ABB components in original packaging, complete with matching serial numbers for full enterprise traceability.

  • Deep MRO Stock & Fast Turnaround: We maintain an extensive inventory of elite brands—including ABB, VALMET, MOOG, and STONEL—allowing us to fulfill urgent outage requirements without long lead times.

  • B2B Logistics Expertise: We provide fully insured, rapid international shipping, ensuring safe delivery to power plants and refineries across the globe.

Request Your Technical Quote Today

Ensure your burner management system operates with maximum safety and precision. Contact our sales office today for competitive contract pricing, official datasheets, and current stock availability for the ABB SF810-F0-G-2400N fiber optic assembly.
