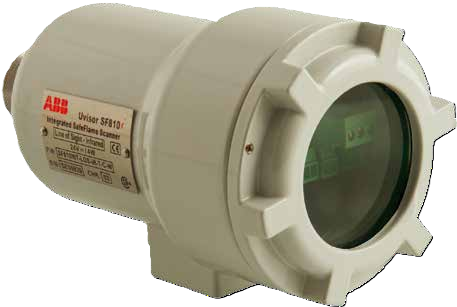

Ensuring Combustion Excellence: The Definitive Guide to the ABB SF810-LOS-IR-TL-C-W Flame Detector
In the high-stakes environments of power generation, petrochemical refining, and heavy manufacturing, the ability to accurately detect a flame is the bedrock of operational safety. The ABB SF810-LOS-IR-TL-C-W is not just a sensor; it is a sophisticated safeguard designed for the most challenging combustion conditions.
At Fireye-Detector.com, we specialize in providing the critical hardware that keeps your Burner Management Systems (BMS) running flawlessly. This guide explores why the SF810-LOS-IR-TL-C-W is the preferred choice for engineers globally.
1. Understanding the SF810-LOS-IR-TL-C-W Configuration
Every character in the ABB model number represents a specific engineering capability. Understanding these helps in selecting the correct part for your specific furnace or boiler.
SF810 Series: The flagship line of ABB intelligent flame detectors, known for integrating the sensor and signal processor into a single, compact housing.
LOS (Lens Optical System): Indicates a sophisticated lens arrangement designed to maximize light collection while maintaining a narrow field of view to avoid "blindness" from neighboring burners.
IR (Infrared): Unlike UV models, this IR detector is optimized for fuels that produce high infrared radiation, such as Coal, Heavy Oil, and Wood.
TL (Threshold/Level): Features adjustable threshold levels, allowing for fine-tuning in multi-burner environments where background "fireball" radiation can cause false positives.
C-W (Connector/Weatherproof): Standardized industrial connectors for easy wiring and a high-grade weatherproof enclosure (IP66/67) for outdoor or humid installations.
2. Key Technical Advantages
A. Smart Flicker Frequency Analysis
The SF810-LOS-IR-TL-C-W does more than just see light. It analyzes the Flicker Frequency of the flame. Because real flames have a unique pulsation pattern compared to the steady glow of hot refractory bricks, the SF810 can distinguish between a live flame and "black-body radiation." This significantly reduces nuisance trips.
B. Integrated Signal Processing
Unlike older systems that required a separate remote amplifier in the control room, the SF810 processes the signal internally. This reduces the risk of signal attenuation or electromagnetic interference (EMI) over long cable runs.
C. Extreme Temperature Durability
Industrial burners are brutal environments. The "TL" configuration includes enhanced thermal compensation, ensuring the detector remains accurate even as the ambient temperature around the burner front fluctuates.
3. Typical Applications
Power Generation
In large-scale utility boilers, the SF810 is used to monitor individual pulverized coal burners. Its precise IR sensing ensures that if a single burner goes out, the system detects it instantly, preventing the buildup of unburnt fuel and potential explosions.
Petrochemical Refineries
For process heaters and flare stacks, the rugged build of the SF810-LOS-IR-TL-C-W ensures longevity in corrosive atmospheres.
4. Why Procurement Matters: Authenticity and Lead Times
When a flame detector fails, every hour of downtime costs thousands of dollars. However, the market is often flooded with refurbished or counterfeit units.
At Fireye-Detector.com, we solve two major pain points:
Guaranteed Authenticity: We provide original ABB units with full COO (Certificate of Origin) documentation.
Strategic Stocking: While official factory lead times can be months, we maintain a ready-to-ship inventory of the SF810 series to support your emergency maintenance needs.
5. Maintenance and Installation Tips
To ensure the longest lifespan for your SF810-LOS-IR-TL-C-W:
Check the Sight Pipe: Ensure the sight pipe is clear of soot buildup. A 5% reduction in visibility can lead to intermittent "no flame" signals.
Cooling Air: Even though the unit is heat-resistant, using clean, dry instrument air for cooling and purging the lens window is highly recommended.
Alignment: Precision is key. Use the ABB swivel mount to align the detector precisely with the primary combustion zone (the "root" of the flame).
Conclusion: Secure Your Burner Management System
The ABB SF810-LOS-IR-TL-C-W is a testament to industrial safety engineering. By combining infrared precision with intelligent signal processing, it provides the reliability needed for 24/7 industrial operations.
Ready to upgrade your flame detection system? Contact the experts at Fireye-Detector.com today for a technical consultation or an immediate quote on the SF810-LOS-IR-TL-C-W and other ABB flame detection spares.
