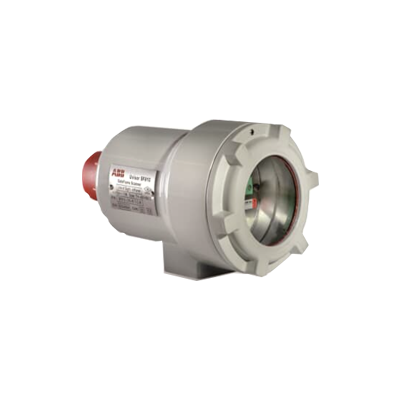

ABB SF810-FOC-IR-TL-C-W Flame Detector Supply and Technical Specifications
In high-capacity utility boilers, waste-to-energy incinerators, and petrochemical process heaters, operational continuity and safety exist in a delicate balance. Industrial Burner Management Systems (BMS) rely heavily on flame detectors to monitor active combustion zones. However, inside a massive multi-burner furnace, traditional line-of-sight sensors face severe engineering challenges. High ambient heat, heavy fly ash, background radiation from red-hot refractory walls, and overlapping flames from adjacent burners frequently cause false "Flame On" or "Flame Off" readings.

A false "Flame Off" signal triggers an immediate, unscheduled boiler trip, costing operators tens of thousands of dollars in downtime and thermal stress on the turbine components. Conversely, a false "Flame On" failure during a true dark-out can lead to catastrophic fuel accumulation and furnace explosions.

To overcome these environmental hazards, the ABB SF810-FOC-IR-TL-C-W Intelligent Fiber Optic Infrared Flame Detector has become the premier choice for global process plants. By isolating sensitive electronics from the heat and utilizing advanced micro-pulsation flicker analysis, this system ensures flawless independent burner profiling.

As a dedicated B2B distributor of factory-original industrial automation components, Wuhan Yuli Automation Technology Co., Ltd. (武汉禹力自动化科技有限公司) provides this comprehensive breakdown of the SF810-FOC-IR-TL-C-W architecture and its advantages for your facility.

Technical Decoding: The SF810-FOC-IR-TL-C-W Model Code

ABB’s part numbering system is highly specific. Understanding the suffix configuration allows instrumentation engineers to verify the perfect mechanical and optical fit for their application:

  • SF810 Series: ABB's flagship digital flame scanner platform. It utilizes advanced digital signal processing (DSP) to evaluate the dynamic physical properties of the targeted burner.

  • FOC (Fiber Optic Cable): Indicates that the scanner uses a flexible, armored fiber optic assembly. This allows the electronic processor to be mounted away from the intense heat and vibration of the furnace windbox.

  • IR (Infrared): Denotes an infrared-optimized solid-state sensor. IR wavelength detection is essential for penetrating dense smoke and carbon soot particles produced by coal, heavy fuel oil (HFO), and complex chemical waste gases.

  • TL (Tuned Lens / Terminal Locking): Features a precision-focused optical lens profile with a mechanical terminal locking mechanism, securing absolute optical alignment inside vibrating boiler sight pipes.

  • C (Industrial Connector): Equipped with a heavy-duty quick-disconnect industrial plug, streamlining field installation, loop testing, and rapid MRO swap-outs.

  • W (Water-Cooled / Weatherproof Cooling Jacket): Incorporates a specialized protective jacket with cooling air or water ports, ensuring internal optoelectronics operate well within safe temperature thresholds under extreme radiant heat.

Core Engineering Advantages for Process Plants

1. Dynamic Flicker Frequency Analysis

Industrial boiler interiors are saturated with static infrared background noise from glowing furnace walls and opposing burners. The ABB SF810-FOC-IR-TL-C-W does not merely register raw IR brightness. Instead, its onboard DSP isolates the micro-pulsation flicker frequencies (typically 10 Hz to 200 Hz) generated exclusively at the turbulent root of the targeted flame. It successfully filters out static DC infrared noise, eliminating false cross-burner readings.

2. Strategic "Photo-Electric Separation"

High temperatures accelerate the degradation of micro-transistors, causing electrical signal drift or hardware failure. The "FOC" architecture keeps the delicate micro-processing circuits inside a cooled, low-vibration enclosure outside the boiler casing. It only routes passive glass fiber strands to the hot burner viewing zone, extending the hardware lifespan and dropping annual MRO overhead.

3. Dual-Channel Programmability

Fuel mixtures can change based on environmental regulations or supply variables. The SF810 system allows technicians to adjust gain parameters and independent frequency thresholds via engineering software. If your plant transitions from coal to gas-firing or a multi-fuel blend, the scanner channels can be reprogrammed to match the new combustion spectrum without modifying the physical hardware layout.

Critical Preventative Maintenance Best Practices

To maximize the signal margin of the SF810-FOC-IR-TL-C-W and avoid unexpected safety trips, instrument teams should enforce these field protocols:

  1. Maintain Consistent Positive Purge Air: If unburnt fuel oil residue, fly ash, or moisture settles on the fiber optic lens tip, the infrared signal drops significantly. Continuous, dry, oil-free instrument air must be supplied to the guide pipe to maintain an aerodynamic positive pressure barrier, sweeping away airborne contaminants.

  2. Respect the Minimum Bend Radius: While the outer armor is flexible, the inner glass core is physically brittle. During turnaround routing or module replacement, avoid pulling or pinching the fiber cable into sharp angles. Micro-fractures inside the glass strands cause unrecoverable signal attenuation, resulting in intermittent false flame faults.

  3. Lens Cleaning Protocols: During scheduled plant outages, carefully extract the fiber optic inner guide. Clean the lens surface with a lint-free optical wipe dampened with high-purity industrial isopropyl alcohol (IPA). Avoid coarse materials that could scratch the anti-reflective lens coating.
