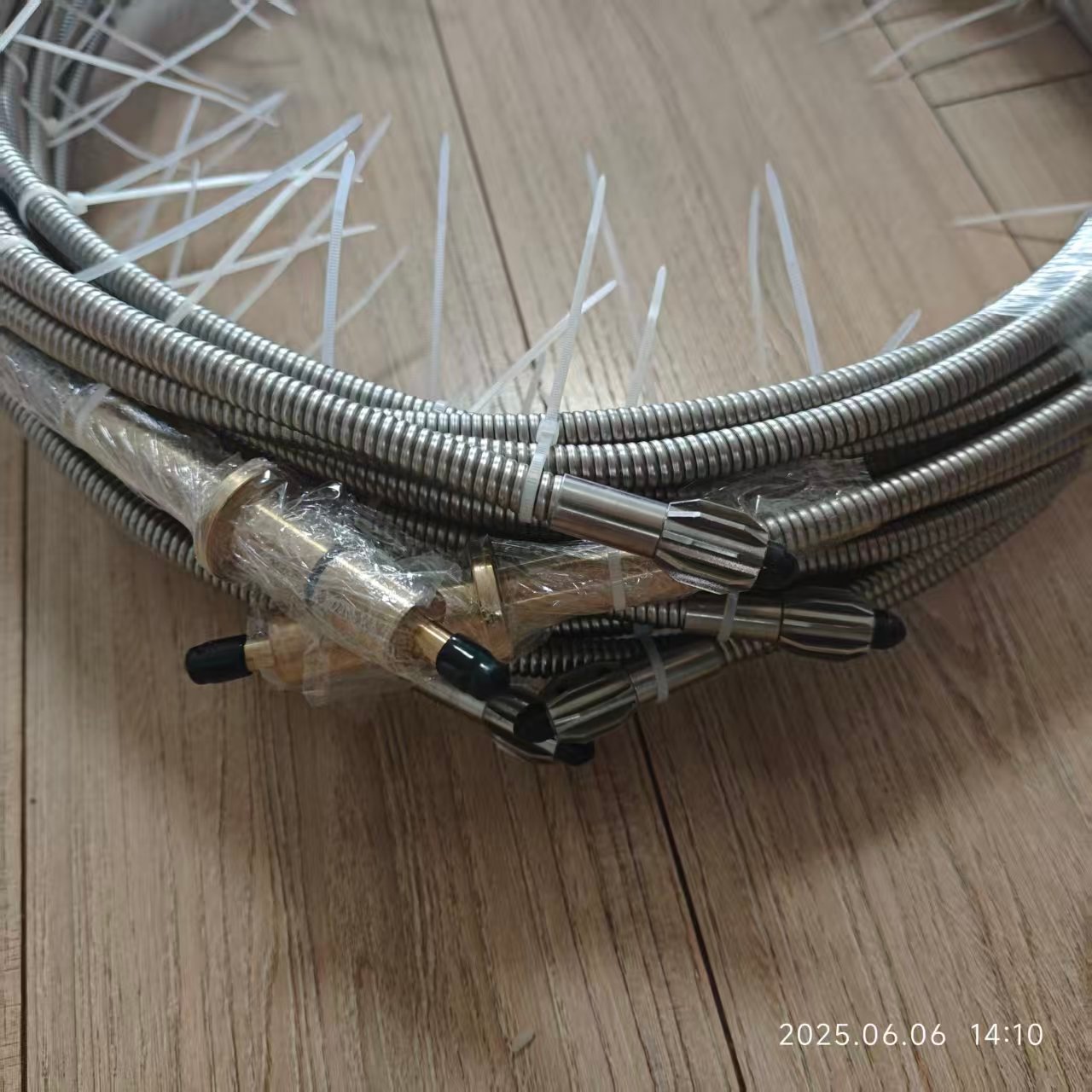

ABB SF810-FOC-G-2400-IR Fiber Optic Assembly: High-Temperature Infrared Flame Detection for Industrial Burners
However, monitoring a flame at its root introduces massive engineering challenges. The intense heat, physical vibration, and corrosive gases at the burner front will instantly destroy standard electronic sensors. To protect sensitive electronics while maintaining an unobstructed line of sight, modern automation systems decouple the sensor body using high-durability light guides.
The ABB SF810-FOC-G-2400-IR is a premium-tier fiber optic inner assembly engineered specifically to bridge this gap, pairing seamlessly with ABB’s flagship SF810 intelligent flame scanning systems.
At Wuhan Yuli Automation Technology Co., Ltd., we specialize in providing factory-original MRO components to keep global industrial operations running safely. This technical article provides an in-depth breakdown of the engineering specifications, operational advantages, and field maintenance best practices for the ABB SF810-FOC-G-2400-IR fiber optic assembly.
Technical Specifications: Decoding SF810-FOC-G-2400-IR
ABB’s product nomenclature provides exact details regarding the mechanical and optical configuration of the light guide. Understanding these variables is critical for procurement managers and instrument engineers during plant upgrades:
SF810 Series: Engineered for direct mechanical alignment and optimal optical matching with the ABB SF810 multi-flame intelligent viewing sensor.
FOC (Fiber Optic Cable): Indicates a flexible, armored light guide bundle that transmits raw optical frequencies, allowing the sensitive electronic scanner housing to be mounted in a cool, low-vibration area away from the burner shell.
G: Denotes a premium-grade optical glass fiber core bundle, manufactured to transmit high-frequency light pulsations without significant signal degradation.
2400: Specifies the exact physical length of the fiber bundle—2400 mm (2.4 meters). This deep-reach length is ideal for large-scale utility boilers, allowing the lens tip to sit deep within the windbox near the fuel nozzle.
IR (Infrared): Tailored specifically for optimal transmission within the infrared light spectrum. Infrared monitoring is critical for tracking the low-frequency flicker profiles characteristic of coal, heavy fuel oil (HFO), and complex industrial gases.
Core Engineering Advantages of the ABB 2400mm IR Light Guide
1. Extreme Thermal Isolation
The combustion zone of a fossil-fuel burner routinely exceeds temperatures that would melt semiconductor components. The high-purity glass core of the SF810-FOC-G-2400-IR exhibits exceptional thermal stability, handling localized thermodynamic stress with ease. By keeping the electronic microprocessors isolated from the heat zone, the system ensures consistent, continuous monitoring during peak thermal cycles.
2. Precision Frequency Transmission for Multi-Burner Profiling
Modern intelligent flame scanners do not simply look for light intensity; they analyze the micro-pulsations or "flicker frequency" of the flame root to differentiate a targeted burner from the background radiation of opposite walls or adjacent flames. The low-attenuation characteristics of the ABB glass fiber bundle ensure that these delicate frequency signatures reach the scanner's receiver crystal completely unaltered. This eliminates common field issues such as signal drift and false "Flame Off" safety trips.
3. Ruggedized Industrial Armor Protection
The exterior of a heavy-duty industrial boiler is an aggressive environment subject to constant structural expansion, structural vibrations, and airborne ash particles. The SF810-FOC-G-2400-IR features a heavy-duty, flexible outer conduit armor. This shielding protects the fragile glass strands inside from mechanical shearing, kinking, or environmental oil and water ingress.
Field Installation and Maintenance Best Practices
To achieve maximum operational longevity and prevent unexpected plant trips, control engineers and maintenance teams should adhere to the following field guidelines:
1. Enforce the Minimum Bend Radius
While the armored exterior conduit is designed to be flexible, the internal glass fiber strands are physically brittle. During installation or routing through the burner windbox, never subject the assembly to sharp angles or tight bends. Exceeding the manufacturer-specified minimum bend radius will cause internal micro-fractures in the glass strands. This permanently degrades the optical transmission area, leading to weak flame signal margins and intermittent control room faults.
2. Maintain Continuous Purge Air Quality
Soot, slag, and unburnt oil residue will quickly cloud the fiber optic lens face if left unprotected, blinding the scanner. The outer guide pipe assembly must be supplied with a continuous stream of clean, dry, oil-free instrument air (compliant with ISO 8573-1 standards). This positive pressure air purge creates an aerodynamic barrier at the lens tip, sweeping away airborne particulates and maintaining an unobstructed optical path.
3. Routine Outage Inspection and Cleaning
During planned plant turnarounds or boiler shutdowns, carefully extract the fiber optic inner assembly. Inspect the lens tip for any signs of heat discoloration, pitting, or ash glaze. Clean the optical surface gently using a lint-free wipe dampened with high-purity industrial isopropyl alcohol. Inspect the entire length of the flexible conduit armor for mechanical crushing or localized kinking.
